Dual Sheet - Thermal and EMI - CSC Thermal

Combination Thermal Interface with EMI Absorbing

  • Thermal conductive & EMI absorbing
  • Thermal conductivity = 1.5 ~ 2.0 W/mK
  • Moderate EMI absorbing property

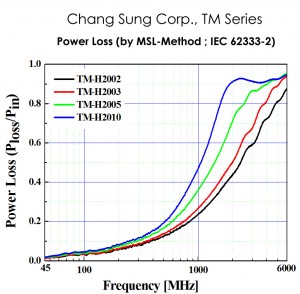

  • Power loss = 0.1~0.4 (@ 1 GHz/1 mm(T))
  • Non or controlled siloxane content
  • Property Symbol Unit TM-S1500 TM-H2000
    Color black black
    Base Polymer Silicone Acryl
    Thermal Properties
    Thermal Conductivity ? W/mK 1.5 2.4
    Electrical Properties
    Dielectric Breakdown Voltage kV >0.25 >0.255
    Volume Resistivity Ocm >1012 >1011
    Mechanical Properties
    Thickness mm 0.5, 1.0,
    1.5, 2.0
    0.2, 0.3, 0.5,
    1.0, 2.0
    Hardness Asker C
    Shore A
    25
    55

    92
    Tensille Strength N/mm² >2.5 >3.0
    Physical Properties
    Application Frequency 100 MHz ~ 6G Hz
    Application Temperature °C -60 to +200 -40 to +130
    Flame Class UL94 V0
    [File No.:
    E258204]
  • (Click for full-size)
